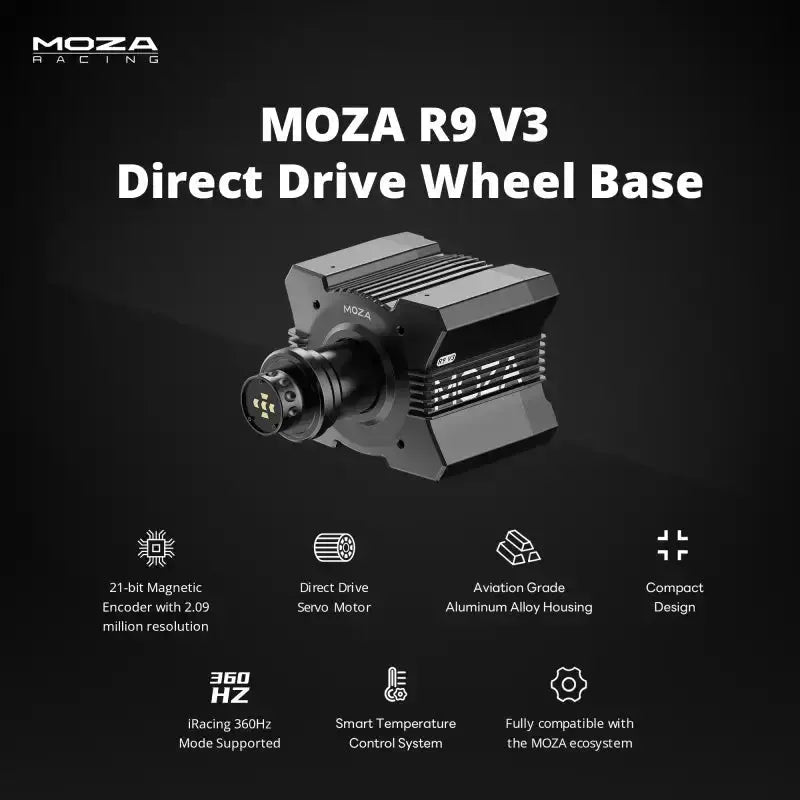

MOZA R9 V3 Direct Drive Wheel Base
MOZA R9 V3 Direct Drive Wheel Base
Tilgængelighed for afhentning kunne ikke indlæses
Vores mission
Vores mission
Vores mission er at gøre gokart mere tilgængelig for alle målgrupper, men frem for alt ønsker vi at bidrage til og støtte (unge) talenter i racerløbets yngleplads.
Besøg showroomet
Besøg showroomet
Besøg vores showroom i Andijk for at se alt dit gokartudstyr og dele, stille spørgsmål og afhente det med det samme. Vi anbefaler at bestille tid og kigge forbi!
Team KartKings
Team KartKings
Hos KartKings arbejder vi med et stærkt team af ægte racer-entusiaster, hver med deres egen unikke viden, erfaring og ekspertise.
The MOZA R9 V3 Direct Drive Wheel Base is designed for PC sim racers who want meaningful direct-drive torque without moving to a larger high-output base. Its servo motor delivers 9 Nm of peak torque, while the 21-bit magnetic encoder records 2,097,152 positions per revolution. NexGen 4.0 force-feedback processing, intelligent temperature control and an aluminium housing support detailed, repeatable steering response.
Why choose this product?
- The 9 Nm direct-drive motor provides clear steering load, kerb detail and vehicle-weight transfer without belts or gears between the motor and steering wheel.
- A 21-bit magnetic encoder and 1000 Hz USB refresh rate support fine steering resolution and responsive input measurement.
Product details
Motor and force-feedback system
The R9 V3 uses an 18-slot, 16-pole high-performance servo motor with 9 Nm peak torque and 180 W peak power. MOZA's NexGen 4.0 algorithm manages force-feedback detail, damping and response, while the industrial-grade conductive slip ring supports the current wired communication system used by compatible MOZA steering wheels.
Encoder, housing and thermal management
The 21-bit magnetic encoder provides 2,097,152 positions per revolution and a very small angular step. The wheelbase is enclosed in aviation-grade aluminium and continuously monitors internal temperature. Intelligent control reduces thermal drift during longer sessions while retaining the compact R9 footprint.
Mounting, connections and software
The base uses a four-hole bottom pattern and can be installed on a rigid cockpit, wheel deck or compatible optional desk clamp. MOZA Pit House controls steering angle, force strength, damping, road effects, firmware and device calibration. Compatible wheel options include the MOZA GS V2P GT Wheel for GT use and the MOZA RS V2 Steering Wheel Leather for a full-size round format. Steering wheels, pedals and mounting accessories are not included.
Compatibility
Platform: Windows PC.
Steering-wheel compatibility: use steering wheels confirmed for the R9 V3 in MOZA's current compatibility information.
Requirements: supplied power adapter, USB connection, MOZA Pit House and a sufficiently rigid mounting surface.
Specifications
What's in the box?
- MOZA R9 V3 Direct Drive Wheel Base
- Power supply and power cable
- USB data cable
- Toolkit and mounting hardware
- User manual
- Warranty card
Frequently asked questions
How much torque does the R9 V3 produce?
The wheelbase delivers 9 Nm of peak direct-drive torque.
What is the encoder resolution?
The R9 V3 uses a 21-bit magnetic encoder with 2,097,152 positions per revolution.
Does it include a steering wheel or pedals?
No. The product contains the wheelbase and its power, USB and mounting accessories; steering wheel and pedals are separate.
Can the force feedback be adjusted?
Yes. MOZA Pit House provides steering-angle, force-strength, damping, road-effect and firmware settings.
Is it a console wheelbase?
No standalone Xbox or PlayStation support is confirmed for this product; it is specified for Windows PC.
