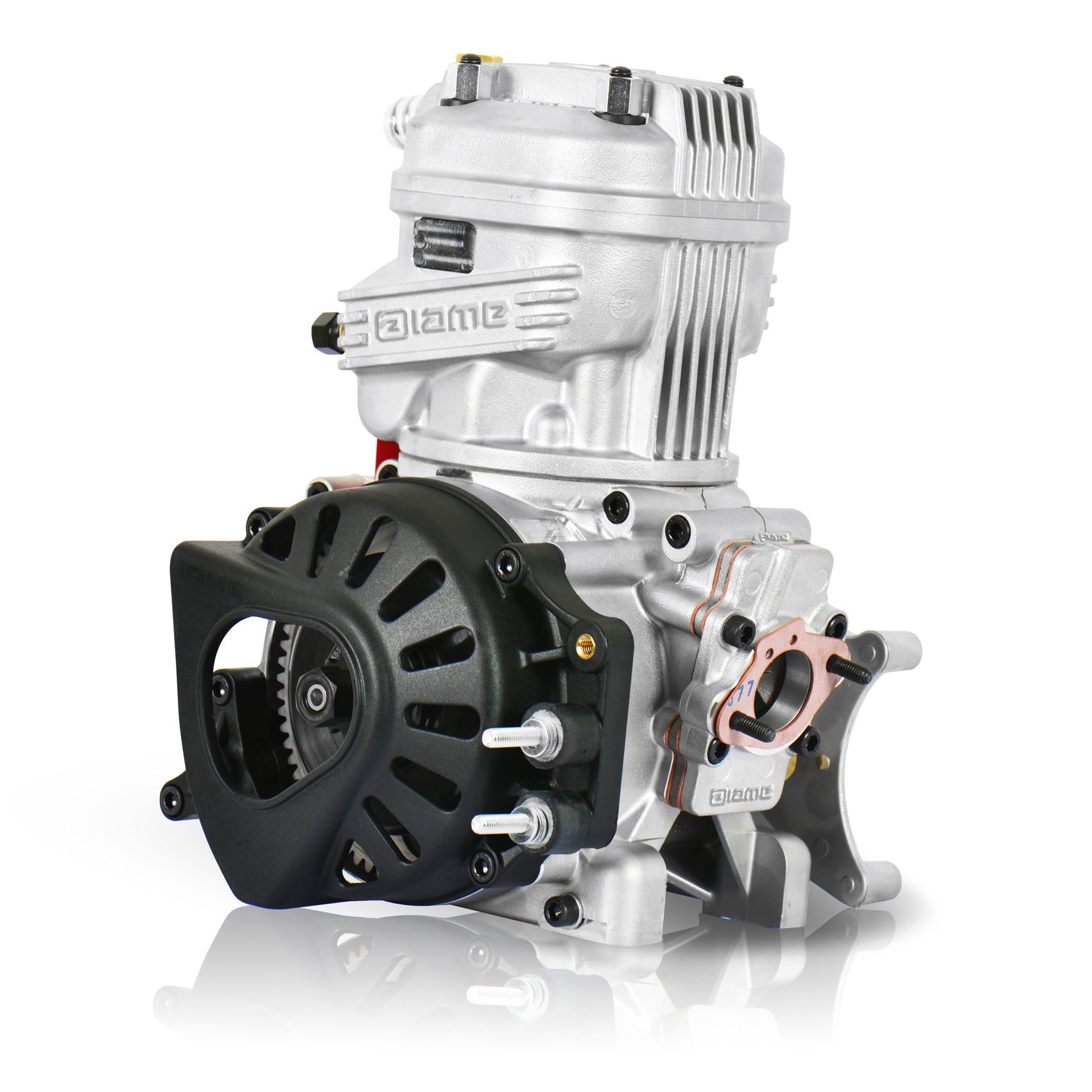

Model: X30 125cc – Senior
Description: The IAME X30 125cc Senior is a powerful and reliable kart engine, ideal for the 125cc Stock Class. This water-cooled, single-cylinder 2-stroke engine delivers a maximum power of 30 hp and 11 Nm of torque. Equipped with an electric starter, digital ignition and a Tillotson HW-27A carburettor. The engine features a balance shaft and a centrifugal dry clutch for optimal performance on the track.
Specifications:
- Capacity: 123.67cc
- Boring: Ø 54,00mm (max. Ø 54,28mm)
- Stroke: 54.00mm
- Ports: 3
- Intake system: Reed Valve
- Lubrication: Oil mixture lubrication
- Ignition system: Digital
- Transmission: Centrifugal dry clutch
- Cooling: Water-cooled
- Balancer axle: Present
- Starter: Electric
- Carburetor: Tillotson HW-27A
- Maximum power: 30 hp
- Maximum torque: 11 Nm
- Maximum speed: 16,000 RPM
