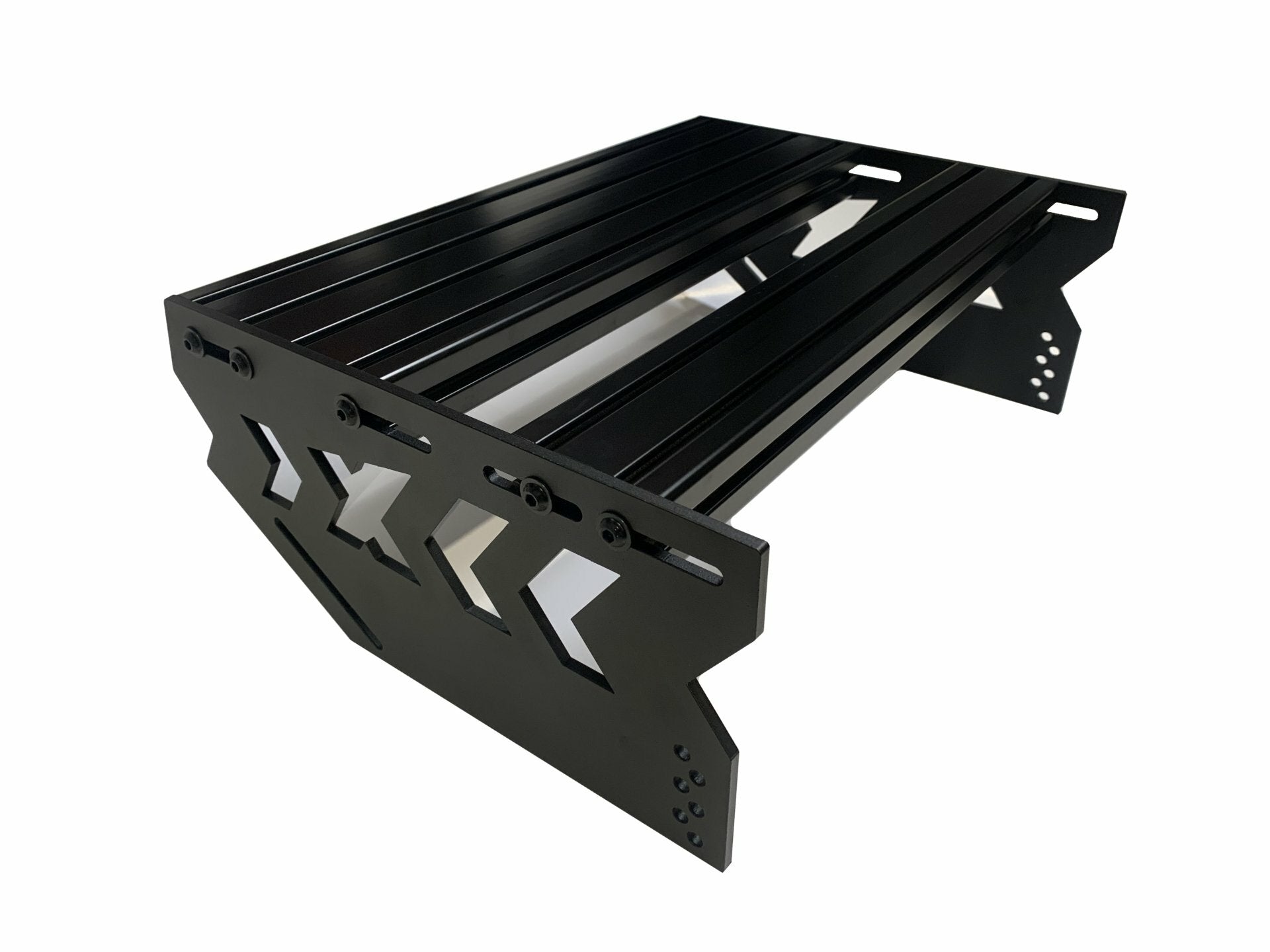

SimXPro® Extended profile pedal deck 500 mm - 580mm

Material: 6 mm hardened steel side plates and 3x 4080 powder coated aluminium profile.
Finishing: Threads are tapped at the end of the profiles.
Bracket colour: Matt black texture powder coating
Profile colour: Matt black powder coating
Our Online Assistant can help you if you need advice.

Dimensions LxWxH (mm): 358x498x160
Weight (kg): 11
Adjustable: Yes, adjustable in height, angle or upside down

Specifications
Compatible with: All 4080-40120-40160 builds with 500 mm spacing between the inner profiles

Compatible pedals: All hydraulic and load-cell pedals. Profiles can be adjusted.
Mounting kit: This pedal deck comes with a full set of M8 bolts and nuts to mount it to your rig.

Not compatible with: Pedals that only have mounting points on the bottom. You can however fix this when you use 4040 corner brackets to reverse the mounting direction. Included: Complete pedal deck with all bolts and (t)nuts for mounting the pedal deck to the rig. Rig is not included.

Pros and cons:
+ The perfect solution for high force Hydraulic and heavy loadcell pedals like Tilton, Heusinkveld, Meca etc.
+ Fits all 4080-40120-40160 rigs with a 500 mm inner width.
+ Creates a higher pedal position to achieve an even better seating position.

- When your pedal set must be mounted from the bottom you need 4x 4040 corner brackets to create a mounting pattern that can be reached from the bottom.

In this 360-video you can see the SimXPro® Extended profile pedal deck 500 mounted on the SimXPro® XT160
